The “FlexiDoc” armrests R8 are suitable for the most demanding of surgical procedures where adjustments under sterile coverage need to be made during surgery. This is done with controls for the thumb. The Carl Mk2 R8 surgeon chair is especially adapted for various types of microsurgery such as Eye, ENT, Neuro, Plastic, Dental and Robot Surgery.
- Flexible armrests that can withstand heavy strain and can be adjusted under sterile coverage
- Great accessibility for feet and equipment pedals through a uniquely designed undercarriage composing of three wheels
- Convenient to move thanks to easy-rolling wheels and a stable parking position by an electric braking system
- Easy to clean with smooth surfaces and encapsulated details
More Information:

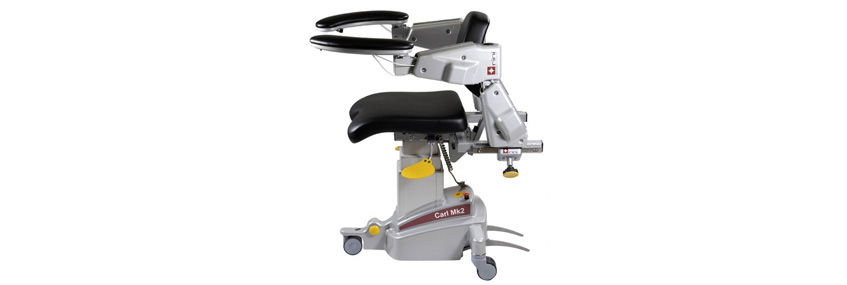

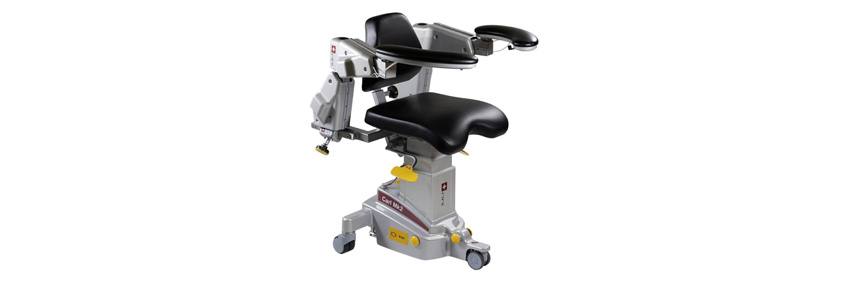

Carl Mk2 is the second generation of Rini’s popular electrically operated surgeon chairs where a multitude of user feedback and new technology have been combined. The goal has been to offer a quality chair for a different variety of microsurgery with high accessibility around the operator’s feet where pedals and other equipment are located.
Simultaneously, Carl Mk2 offers a maximum ergonomic comfort for the surgeon thanks to the R8 “FlexiDoc” armrests which are suitable for the most demanding of surgical procedures where adjustments under sterile coverage must be made during the surgery. It’s operated by controls located by the thumb.
The surgeon chair is easy to raise and lower electrically through buttons operated with the heels. It has a stable parking mode which is controlled by an electric brake system that is activated on the side of the chair. The wheel frame is equipped with a housing which facilitates effortless clean up. All in all, Carl Mk2 offers the surgeon a tailor-made work environment of the highest quality.
General
| Weight of unit | 40 kg |
| Wheel frame | Width 560 mm x Length 560 mm |
| Electric | Battery operation - Charger 100 - 240 V |
| Cushions | Vinyl - black or blue (standard) or other colors / materials as accessories |
Operator
| Lifting capacity | 150 kg |
| Height adjustment | 490 - 800 mm - foot control with push buttons on the side |
Armrest
| Model R8 | ”FlexiDoc” armrest |
| Shape | Boomerang with soft cushion |
| Adjustments | Height, angle and length by thumb grip |
Backrest
| Type | Standard H 350 mm x W 300 mm - other types to order |
| Adjustments | Angle -15° till +20° |
| Height adjustment | 100 mm |
Seat
| Type | Standard L 420 mm x W 460 mm - other types to order |
| Inclination | Angle +5° till -15° |
Brake
| Type | Electric with one-button operation for the rear wheels |
Cushion kit soft padding
