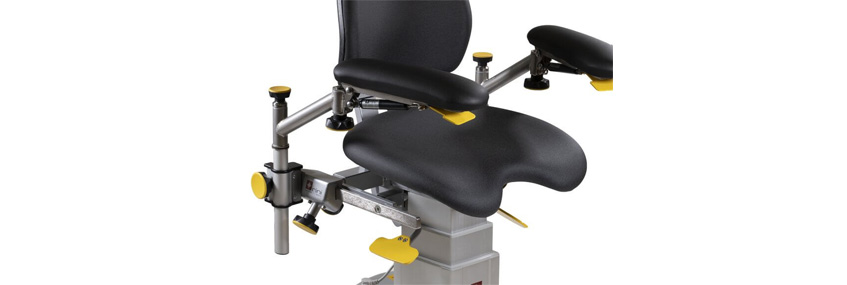

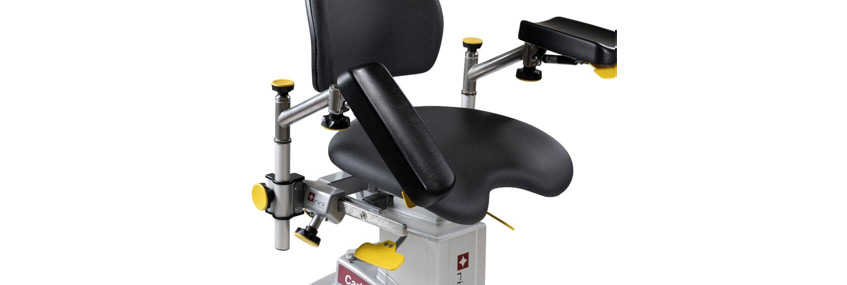

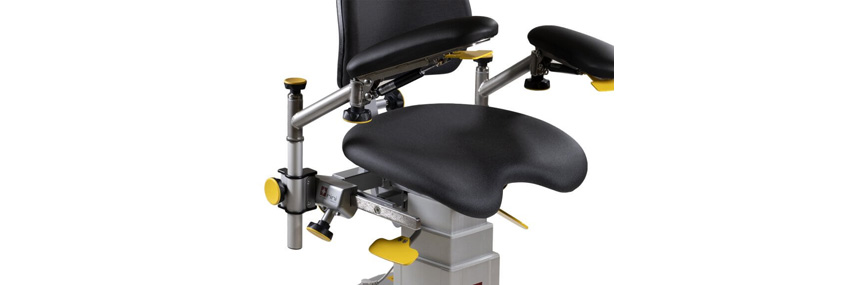

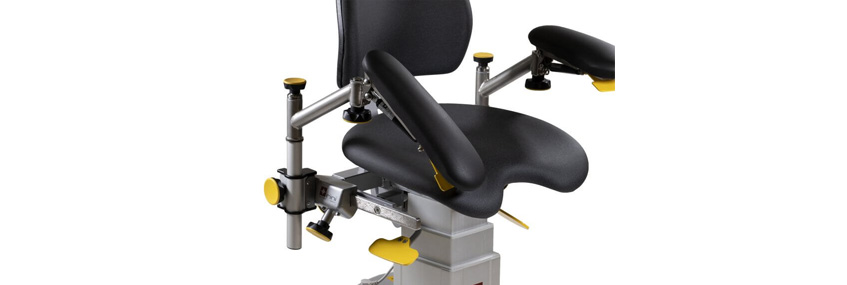

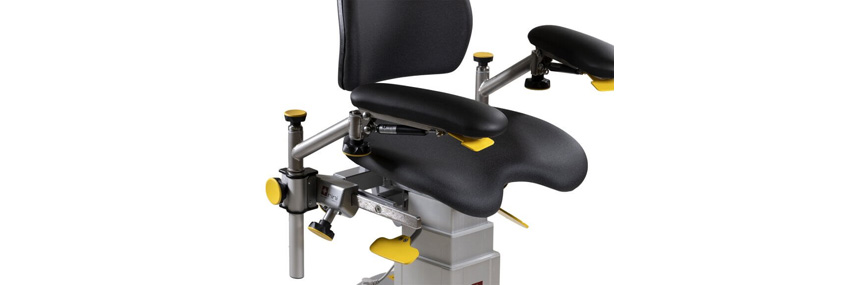

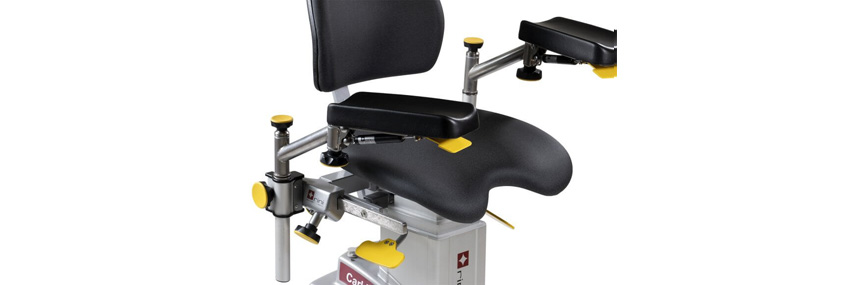

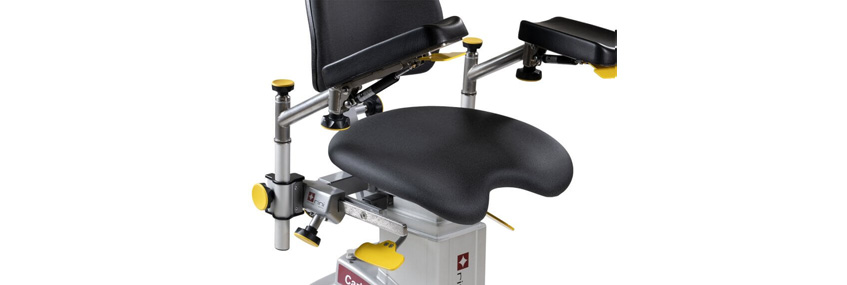

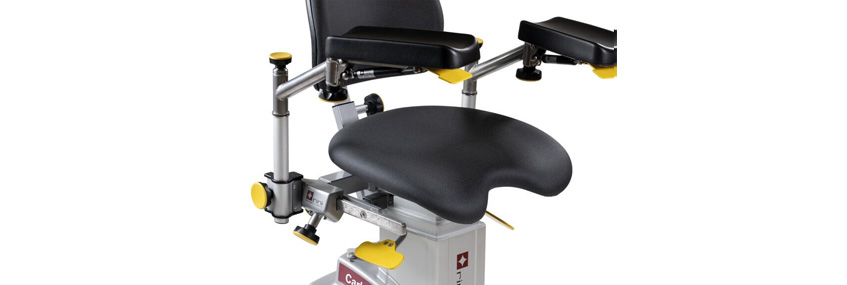

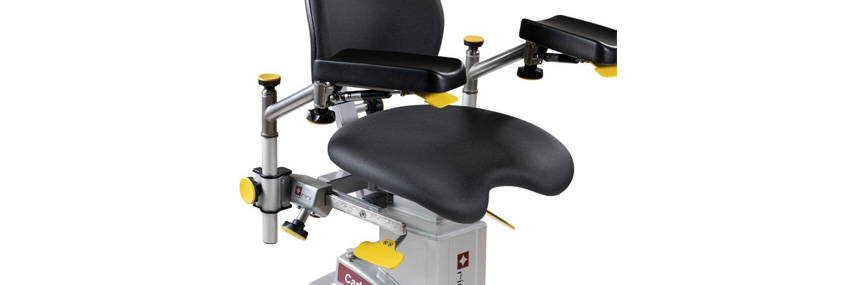

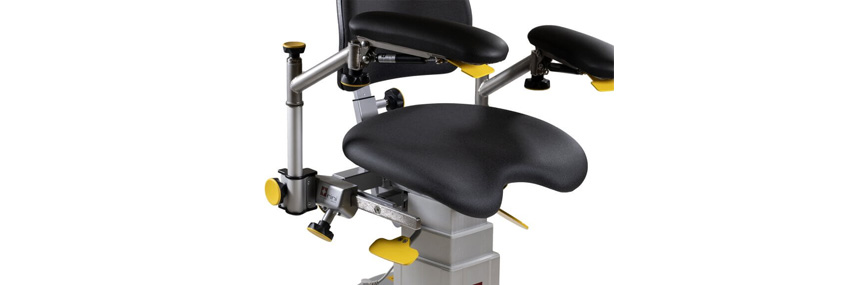

The “OneGrip” armrests R7 are popular when minor adjustments under sterile coverage need to be made during surgery. The Carl Mk2 R7 surgeon chair is especially adapted for various types of microsurgery such as Eye, ENT, Neuro, Plastic, Dental and Robot Surgery.
- Stable armrests which can be adjusted under sterile coverage
- Great accessibility for feet and equipment pedals through a uniquely designed undercarriage composing of three wheels
- Convenient to move thanks to easy-rolling wheels and a stable parking position by an electric braking system
- Easy to clean with smooth surfaces and encapsulated details
More Information:

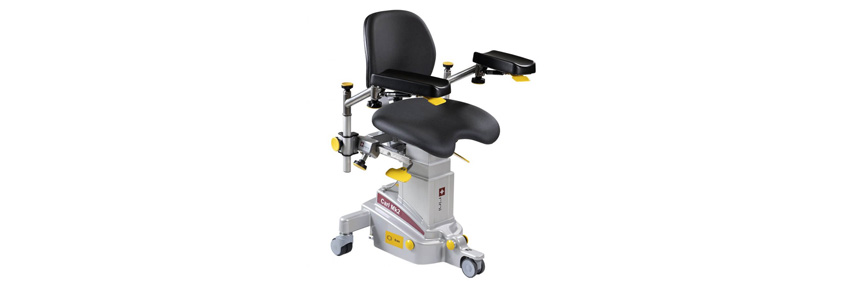

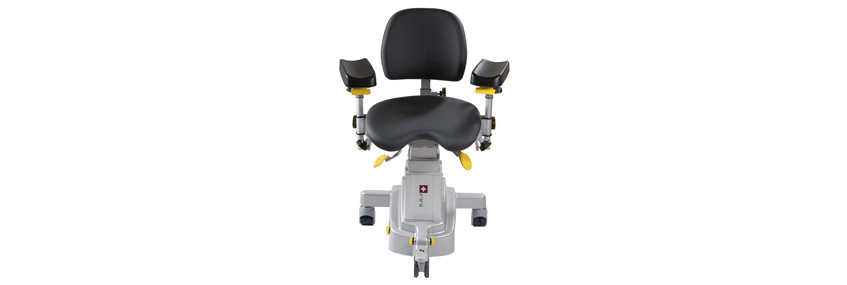

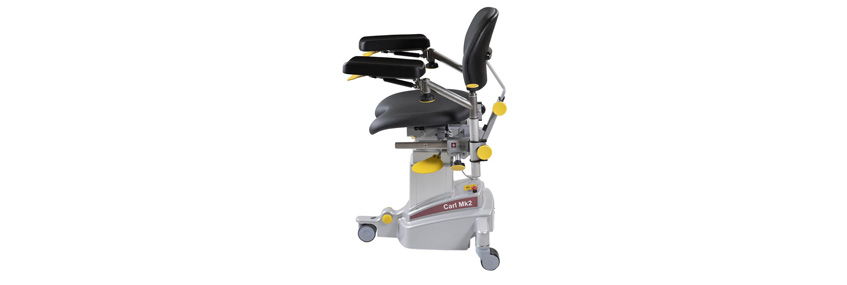

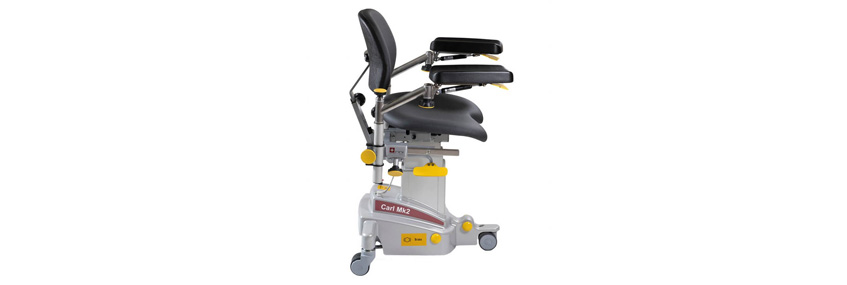

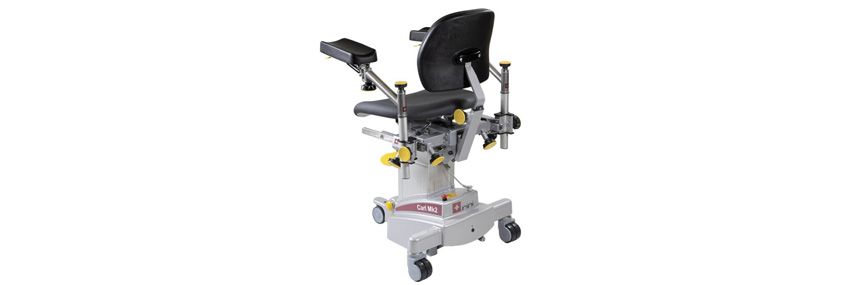

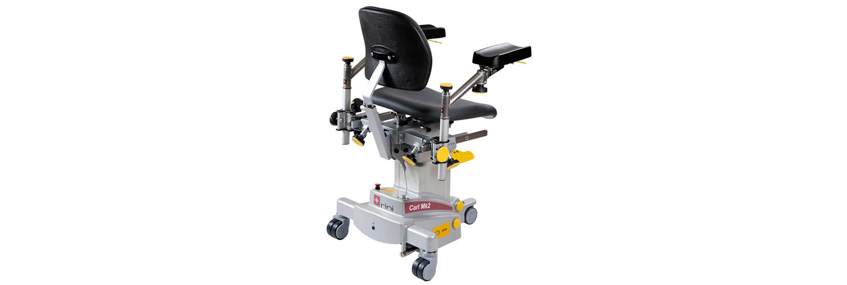

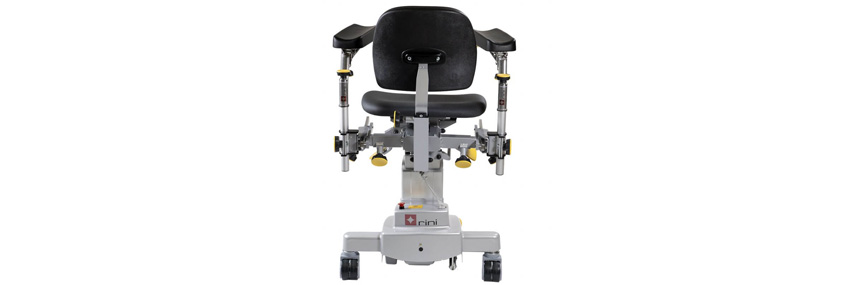

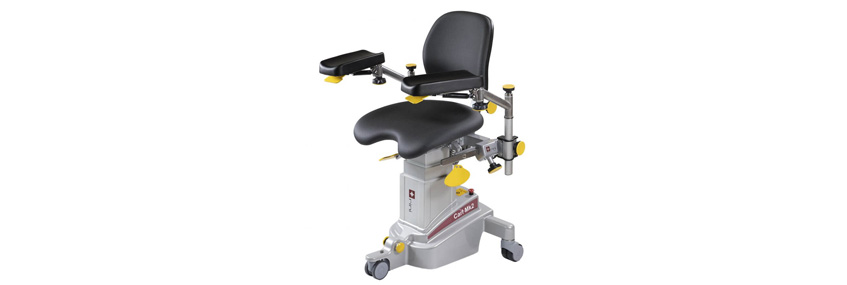

Carl Mk2 is the second generation of Rini’s popular electrically operated surgeon chairs where a multitude of user feedback and new technology have been combined. The goal has been to offer a quality chair for a different variety of microsurgery with high accessibility around the operator’s feet where pedals and other equipment are located.

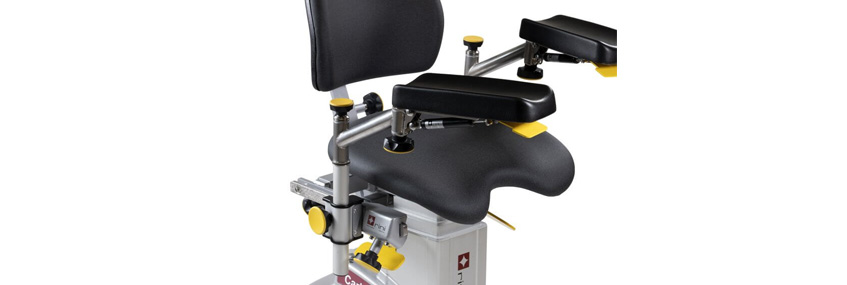

Carl Mk2 offers exceptional ergonomic convenience for the surgeon through the R7 “OneGrip” armrest which is popular when minor adjustments under sterile coverage have to be made.
The surgeon chair is easy to raise and lower electrically through buttons operated with the heels. It has a stable parking mode which is controlled by an electric brake system that is activated on the side of the chair. The wheel frame is equipped with a housing which facilitates effortless clean up. All in all, Carl Mk2 offers the surgeon a tailor-made work environment of the highest quality.
General
| Weight of unit | 40 kg |
| Wheel frame | Width 560 mm x Length 560 mm |
| Electric | Battery operation - Charger 100 - 240 V |
| Cushions | Vinyl - black or blue (standard) or other colors / materials as accessories |
Operator
| Lifting capacity | 150 kg |
| Height adjustment | 490 - 800 mm - foot control with push buttons on the side |
Armrest
| Model R7 | ”OneGrip” armrest |
| Shape | Cup shaped |
| Adjustments | Up / down by one grip |
Backrest
| Type | Standard H 350 mm x W 300 mm - other types to order |
| Adjustments | Angle -15° till +20° |
| Height adjustment | 100 mm |

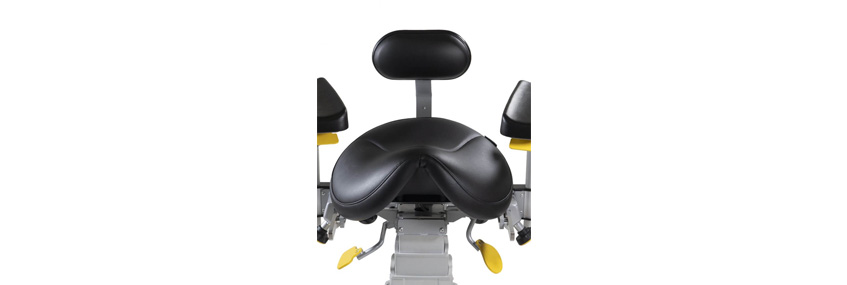

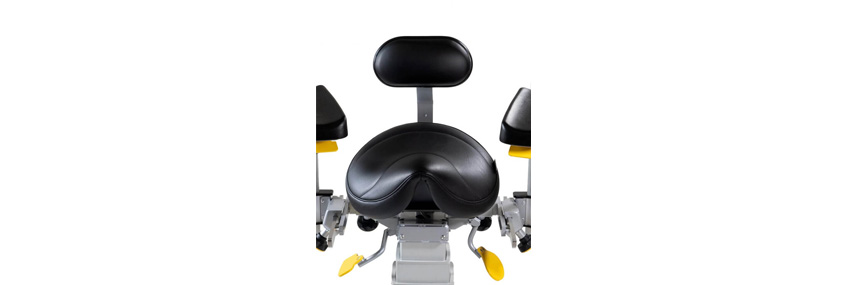

Seat
| Type | Standard L 420 mm x W 460 mm - other types to order |
| Inclination | Angle +5° till -15° |
Brake
| Type | Electric with one-button operation for the rear wheels |
Cushion kit soft padding
Extended height adjustment armrest 350mm (225mm)
