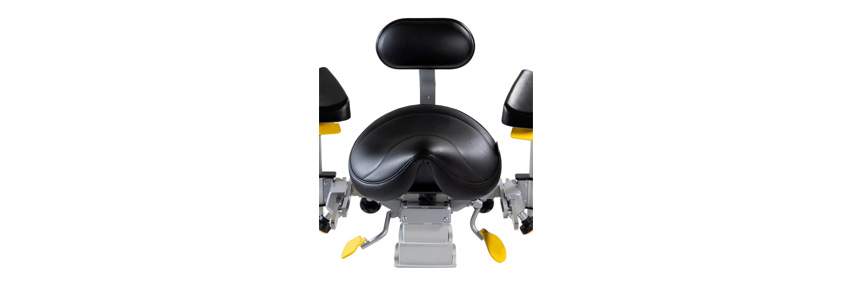

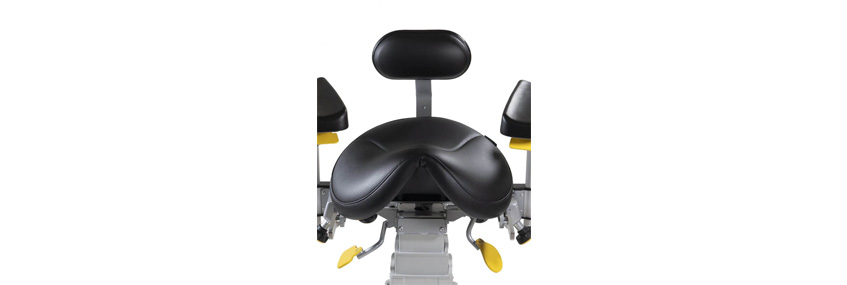

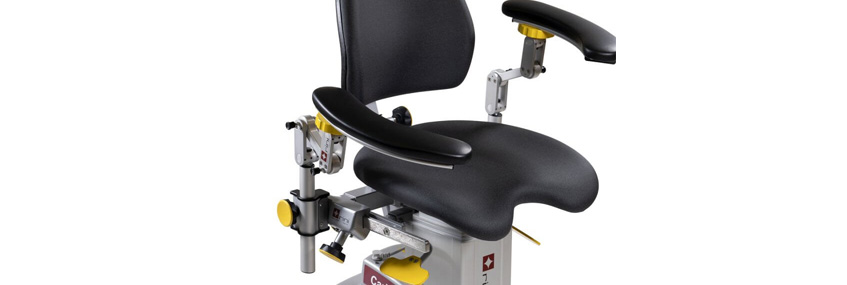

The ”Rilis” armrests R6 have a patented safety feature which prevents them from being dislocated when under load. They are adjusted with buttons to the desired position with high degree of freedom. The Carl Mk2 R6 surgeon chair is especially adapted for various types of microsurgery such as Eye, ENT, Neuro, Plastic, Dental and Robot Surgery.
- Safety armrests with large adjustment possibilities that are controlled with buttons to the desired position
- Great accessibility for feet and equipment pedals through a uniquely designed undercarriage composing of three wheels
- Convenient to move thanks to easy-rolling wheels and a stable parking position by an electric braking system
- Easy to clean with smooth surfaces and encapsulated details
More Information:

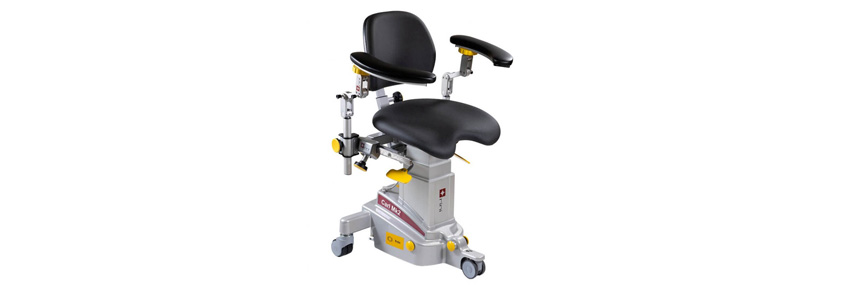

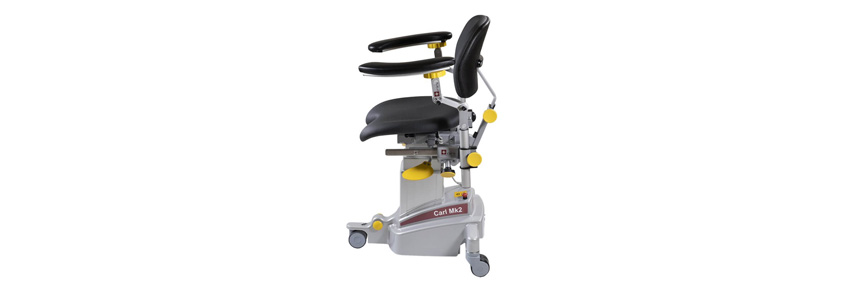

Carl Mk2 is the second generation of Rini’s popular electrically operated surgeon chairs where a multitude of user feedback and new technology have been combined. The goal has been to offer a quality chair for a different variety of microsurgery with high accessibility around the operator’s feet where pedals and other equipment are located.

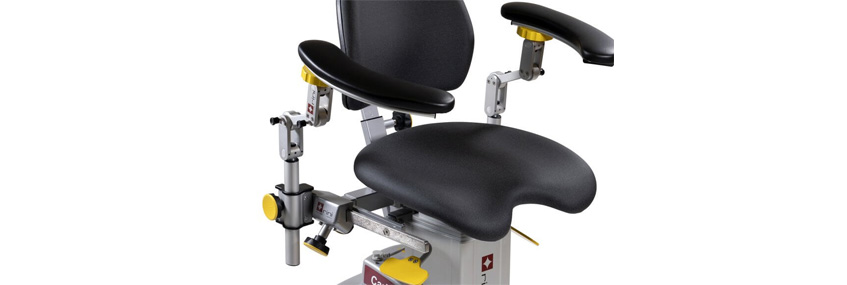

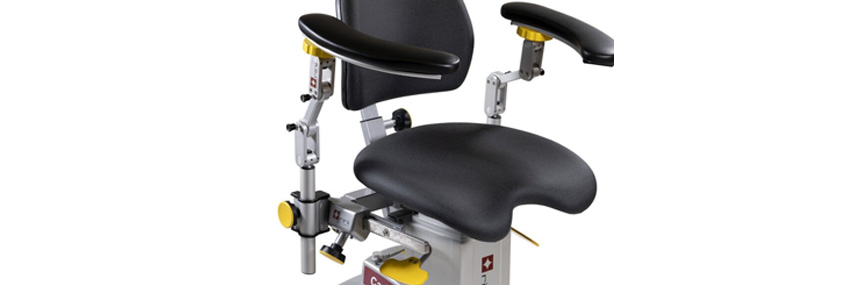

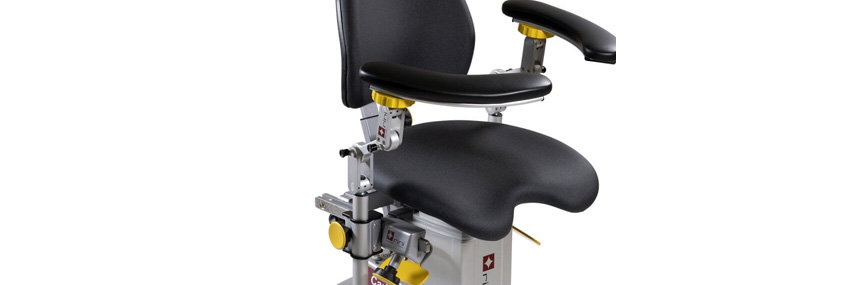

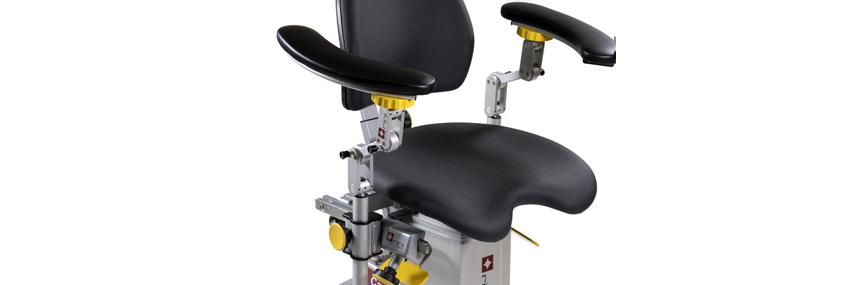

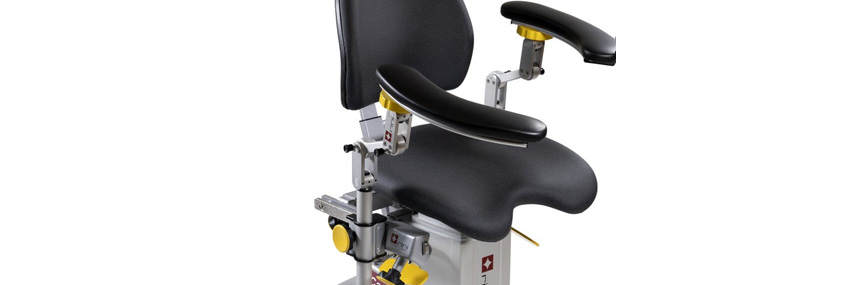

The surgeon chair Carl Mk2 offers comfort for the surgeon through the R6 “Rilis” armrests which have a patented safety feature which prevents them from being dislocated when under load. They are moved to the desired position with high degree of freedom.
The surgeon chair is easy to raise and lower electrically through buttons operated with the heels. It has a stable parking mode which is controlled by an electric brake system that is activated on the side of the chair. The wheel frame is equipped with a housing which facilitates effortless clean up. All in all, Carl Mk2 offers the surgeon a tailor-made work environment of the highest quality.
General
| Weight of unit | 40 kg |
| Wheel frame | Width 560 mm x Length 560 mm |
| Electric | Battery operation - Charger 100 - 240 V |
| Cushions | Vinyl - black or blue (standard) or other colors / materials as accessories |
Operator
| Lifting capacity | 150 kg |
| Height adjustment | 490 - 800 mm - foot control with push buttons on the side |
Armrest
| Model R6 | ”Rilis” armrest |
| Shape | Boomerang (standard) - other types to order |
| Adjustments | Height, angle and length with buttons |
Backrest
| Type | Standard H 350 mm x W 300 mm - other types to order |
| Adjustments | Angle -15° till +20° |
| Height adjustment | 100 mm |
Seat
| Type | Standard L 420 mm x W 460 mm - other types to order |
| Inclination | Angle +5° till -15° |
Brake
| Type | Electric with one-button operation for the rear wheels |
