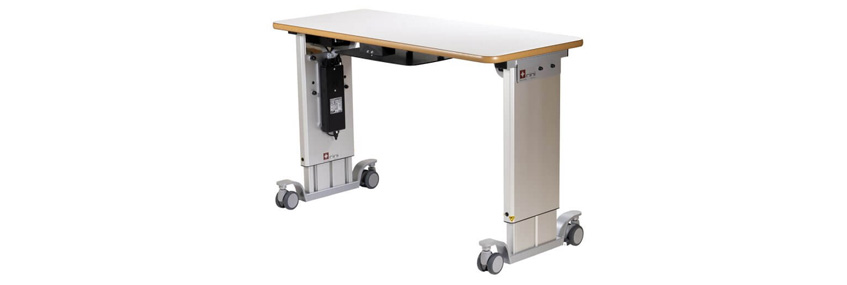

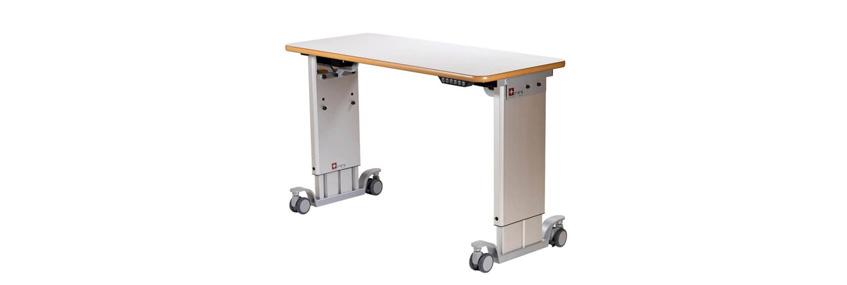

Device table — Linnea

Linnea is a stable device table available in different widths and that can be tailored much to the customer’s needs. This applies to the design of the table top and the integration of different devices and instruments.

  • High accessibility for both medical staff and patients
  • Rini customize table tops and outlets for different instruments for an optimal work environment.
  • Electrically powered height adjustment with soft start/stop
  • Squeeze protection for the patient

More Information:

www.rinicompany.com

Rini’s device table Linnea, with its flat lifting columns are developed to provide high accessibility both for the operator as well as for patients, not the least patients in wheelchairs. The tables are customized much after the customer’s requirement when it comes to the design of the table top as well as the integration of different devices and instruments. All tables are equipped with a soft start/stop function and outfitted with squeeze protection for the patient.

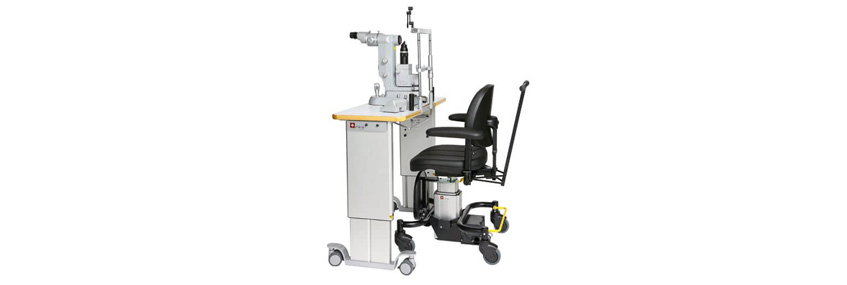

The device tables are foremost intended for eye clinics, where for example slit lamps, lasers, microscopes and similar equipment is mounted on them. The tables are easy to manoeuvre and have four lockable wheels.

General

Weight of unit från 40 kg
Width 650 mm, 850 mm or 1050 mm (between lifting columns)
Table top Beech laminate - see variants under accessories
Electric Mains 100 - 240 V

Operator

Lifting capacity 130 kg
Height adjustment 690 – 1040 mm – with buttons and memory function

The device table Linnea is available in differnt widths between the lifting columns; Linnea 650, Linnea 850 and Linnea 1050 (mm).

The design of the table top, positioning of the control box, electrical outlets, cut out holes can be customized

Options

Keyboard holder
Low wheelbase
